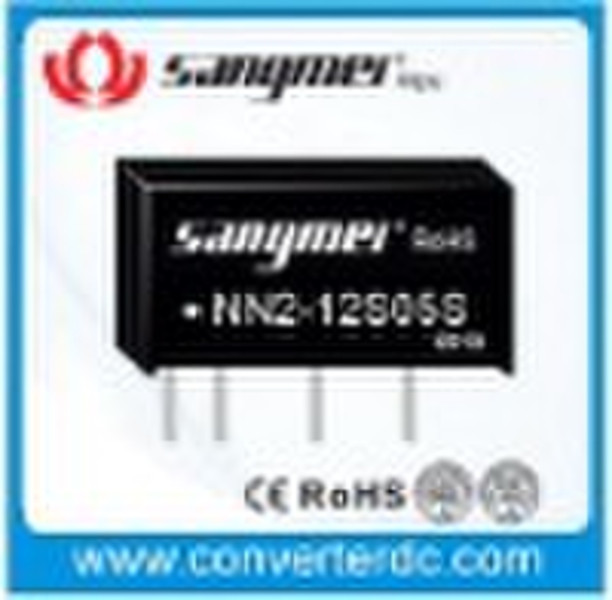

2W Micro power DC-DC Converter
frankie liu
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | SANGMEI |
| Model Number | NN2-12S05S |
| Size | 19.5*10.0*7.0mm |
| Weight | 5g |
| Input Voltage | 12V |
| Output Voltage | 5V |
| Output Current | 40~400mA |
| Output Power | 1 - 50W |
| Output Type | Single |
| Type | DC/DC Converters |
Our dc-dc converter could applies in military,aviation,railway,electricity equipment,medical treatment,vehicle,safe guard,communication,instruments and etc usage! Dc-Dc converter Warranty time could be 5 years(in normal condition) Good quality with stable performance but competitive price!!!! Typical performance: 1.Characteristics:Fixed Input,isolation, Unregulated Output,2W 2.Isolation voltage: 1000VDC/3000VDC 3.Efficiency :up to 80% 4.Working temperature -40 +85 °C 5.MTBF≥35×105Hrs 6.In line with RoHS codes 7.Line regulation (once input change±1%) ±1.2% 8.Load regulation (10%-100% full load) 15% 9.Ripple and noise (20MHz Band width) <200mVp-p .
Delivery terms and packaging
Packaging Detail: CARTON Delivery Detail: 5-10days
Port: Huangpu
